HawkEye: Practical In-Flight Obstacle Avoidance with Event Camera and LiDAR Fusion

Drones are increasingly used in applications such as last-mile delivery and infrastructure inspection, but their safe operation, especially in high-speed scenarios, remains a critical challenge. Existing vision- and LiDAR-based obstacle localization methods suffer from motion blur, latency, and low spatio-temporal resolution, making them inadequate for detecting and tracking fast-moving objects. In this work, we present HawkEye, a drone obstacle avoidance system that fuses event cameras and LiDAR to achieve high-frequency, accurate 3D tracking of dynamic objects. By leveraging the complementary strengths of both sensors, HawkEye enables robust real-time sensing and safe evasive maneuvers, addressing a key requirement for the large-scale deployment of autonomous drones.

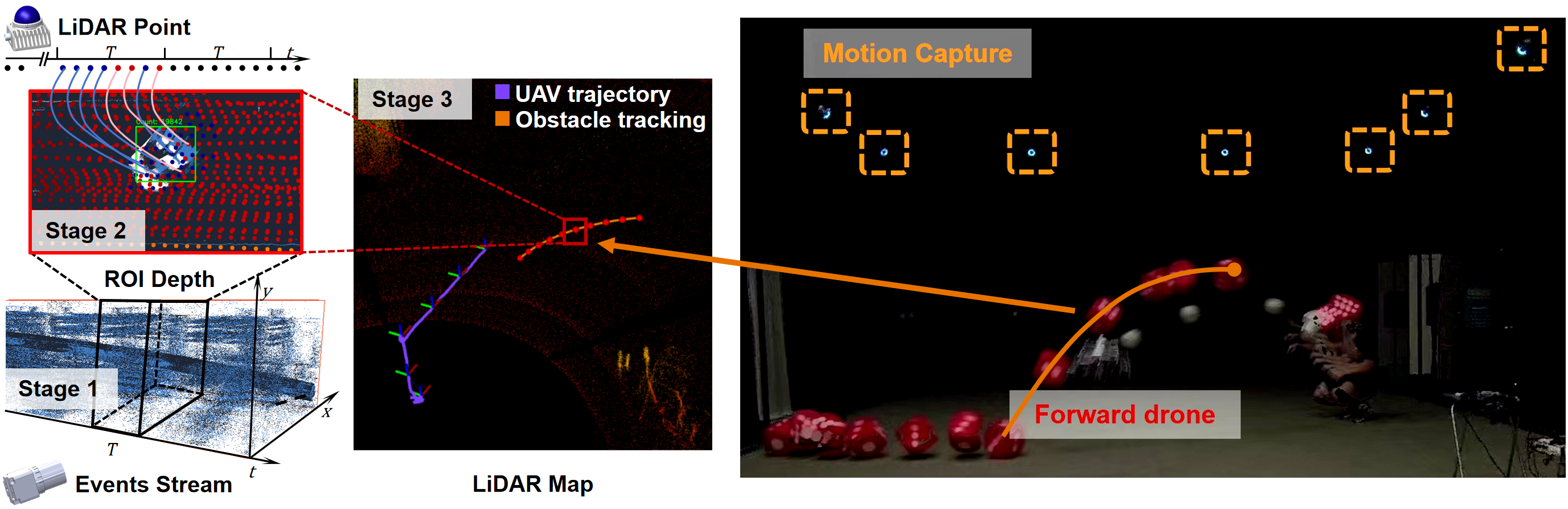

• Stage 1: Event-Based 2D Motion Tracking.
  The pipeline begins by processing the raw event stream to extract a dense optical flow field that captures fine-grained motion information. This capability enables reliable segmentation of dynamic objects, continuous tracking of their 2-D trajectories, and high‑frequency velocity estimation.
• Stage 2: Event-Guided LiDAR Motion Compensation.
  Sparse LiDAR points, each associated with a unique timestamp, are then corrected for motion distortion. This de-smearing process is guided by velocity vectors estimated from the event stream, yielding a physically accurate point cloud of the object at a unified reference time.
• Stage 3: 3D Trajectory Generation.
  Finally, the 2D trajectory is fused with the motion-compensated point cloud. A depth value is assigned to each 2D track point by associating it with the nearest 3D points in the cloud, resulting in a high-fidelity 3D trajectory that accurately captures the object's spatial position and motion over time.

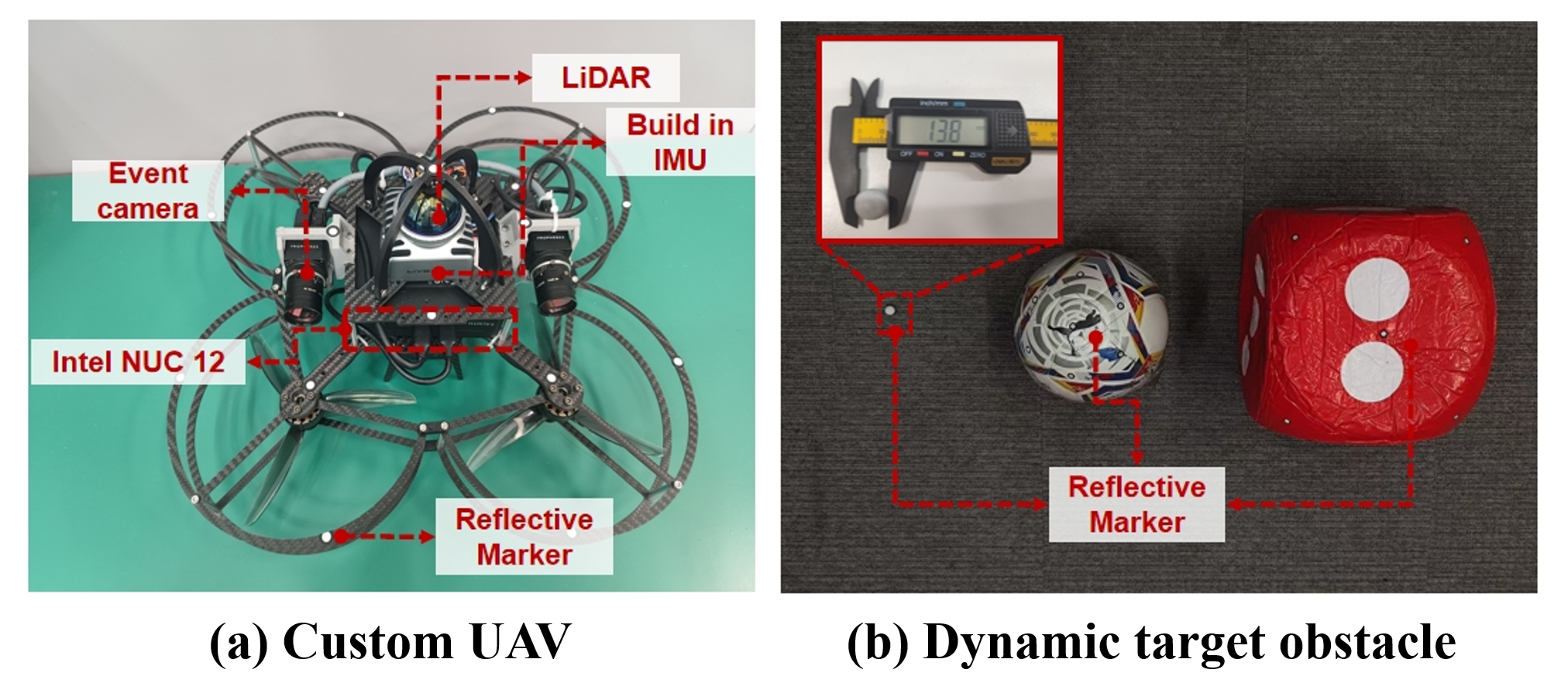

Our system is deployed on a custom-built UAV, with the hardware configuration shown below. The onboard computation is performed by an Intel NUC 12. The perception module integrates two primary sensors: (1) a Prophesee EVK4 HD event camera equipped with a 1280×720 Sony IMX636ES sensor, and (2) a MID-360 LiDAR, which provides 360° horizontal field-of-view depth measurements. As shown in the right panel of the figure, the dynamic target objects (a ball and a die) are equipped with reflective markers to facilitate ground-truth validation.

We achieved a 100% success rate in obstacle depth estimation within the field of view, accomplished by throwing balls at various speeds and angles against a complex forest background.
